Features:

Lightweight and small size, gorgeous laser effect with high speed X/Y axis rotation,perfect for medium indoor venue.

1. Independent R&D circuit, program and structural appearance.

2. Laser parts and moving head unified circuit and software design.

Parameter:

◎Power consumption: ≤100W

◎Scanner: 25kpps , scan angle:max±30°; Input signal:±5V;Linearity distortion<2%

◎Motor: 3 phase 42 motor 2pcs

◎X axis 540° rotation,Y axis 270° rotation

◎Modulation: analog

◎Beam diameter and divergence: 3*6.5mm; 1.5mrad

◎Control mode: music (black out)/ automatic/master-slave/DMX512(6/40CH)/ILDA

◎Control interface: 3 pin DMX512/25DB ILDA

◎Demonstration effect: built-in 140 pattern and 5 pages of animation

◎DMX effect: Single pattern mode, and with the function of unique blanking, strobe,

rotation, movement, billowing, zoom, write in, speed and color etc.

◎Operating requirement: dry, less dust, 0~35℃(environmental temperature), will reduce the attenuation of the diode and extend the life of the light.

◎Application: disco, club, concert, medium indoor venue, festival

◎Carton size: 34.5*23*48cm

◎Gross weight: 9.5 kg

◎2in1 Flight case size: 66*46*65cm

◎Gross weight: 41kg

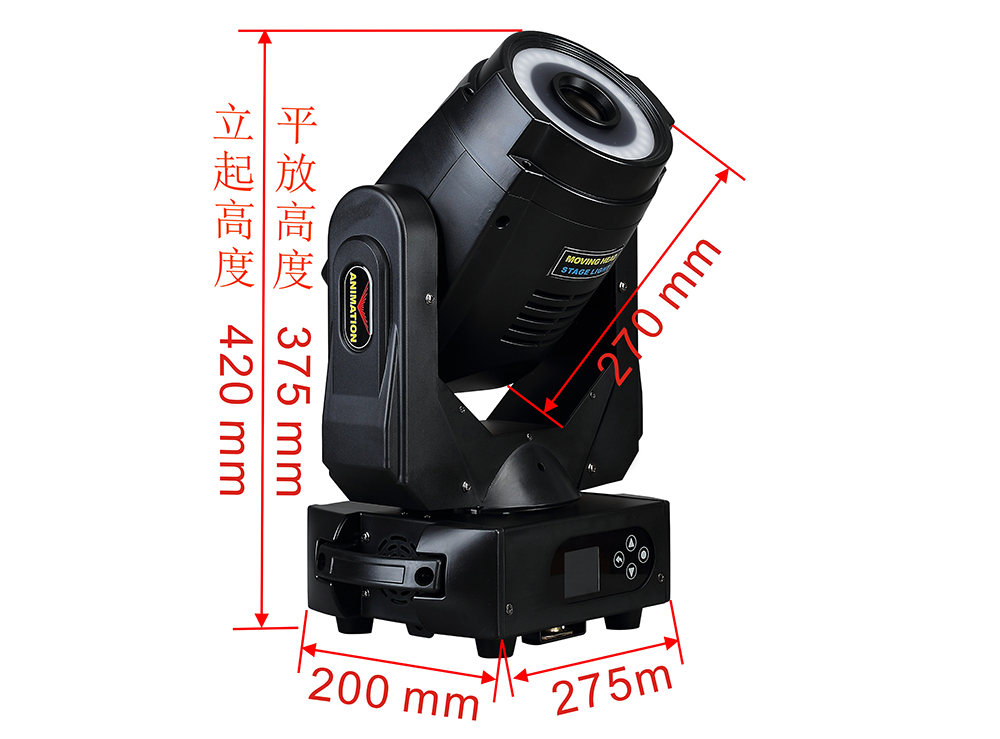

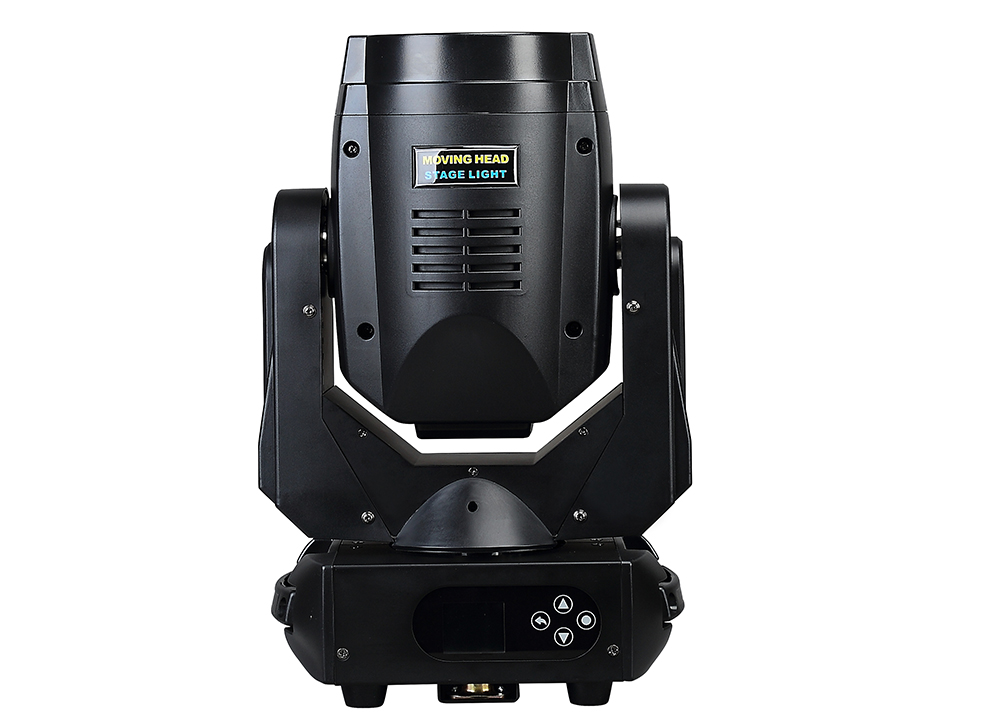

Pictures:
