50-150W IECEX Explosion Proof flood light
-
Material:
ADC12
-
Color:
grey/yellow
-
Goods No:
9405469000
-
Technics:
50W/100W/150W/200W
-
Weight:
5.5/ 8.9/ 12.2/ 15.5KG
- Size:
-
Packaging:
1pc/carton
-
Charateristics:
Explosion proof light
Product Information

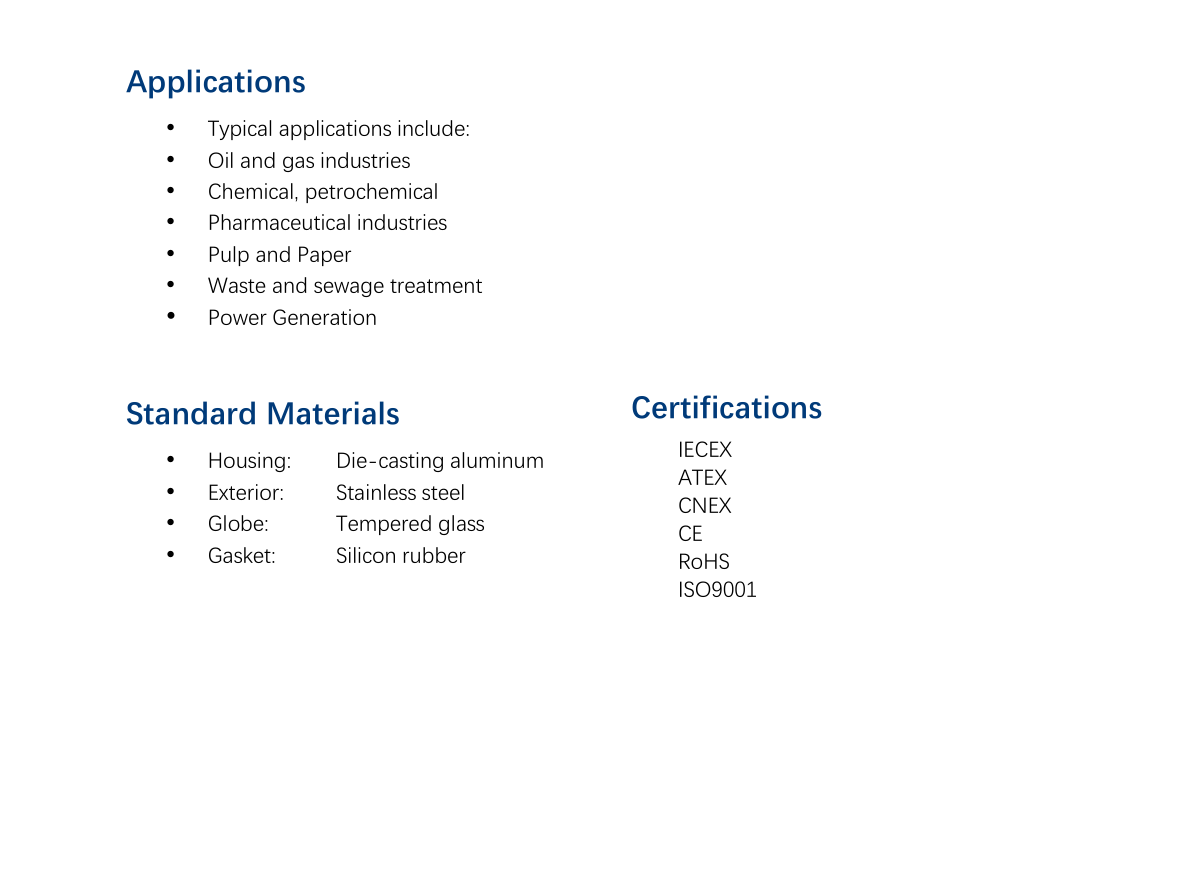

Applications
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation

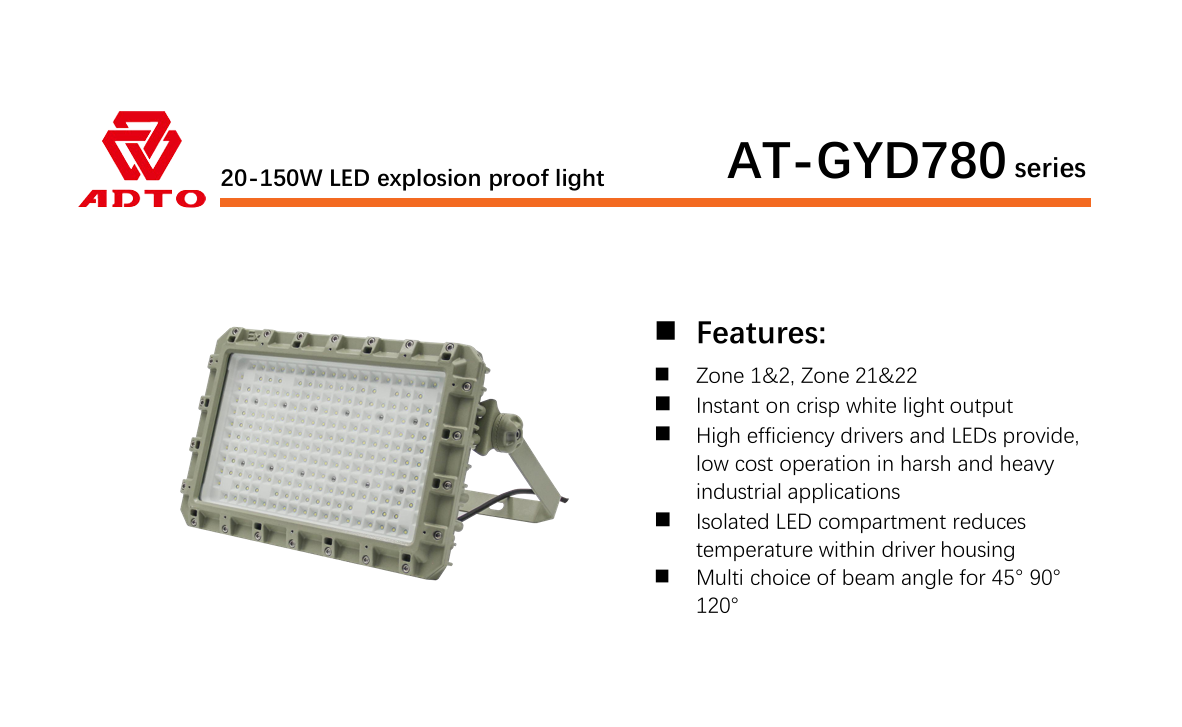

Features:
Zone 1&2,Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide,low cost operation in harsh and heavy industrial applications
Isolated LED compartment reduces temperature within driver housing
Multi choice of beam angle for45°90°120°

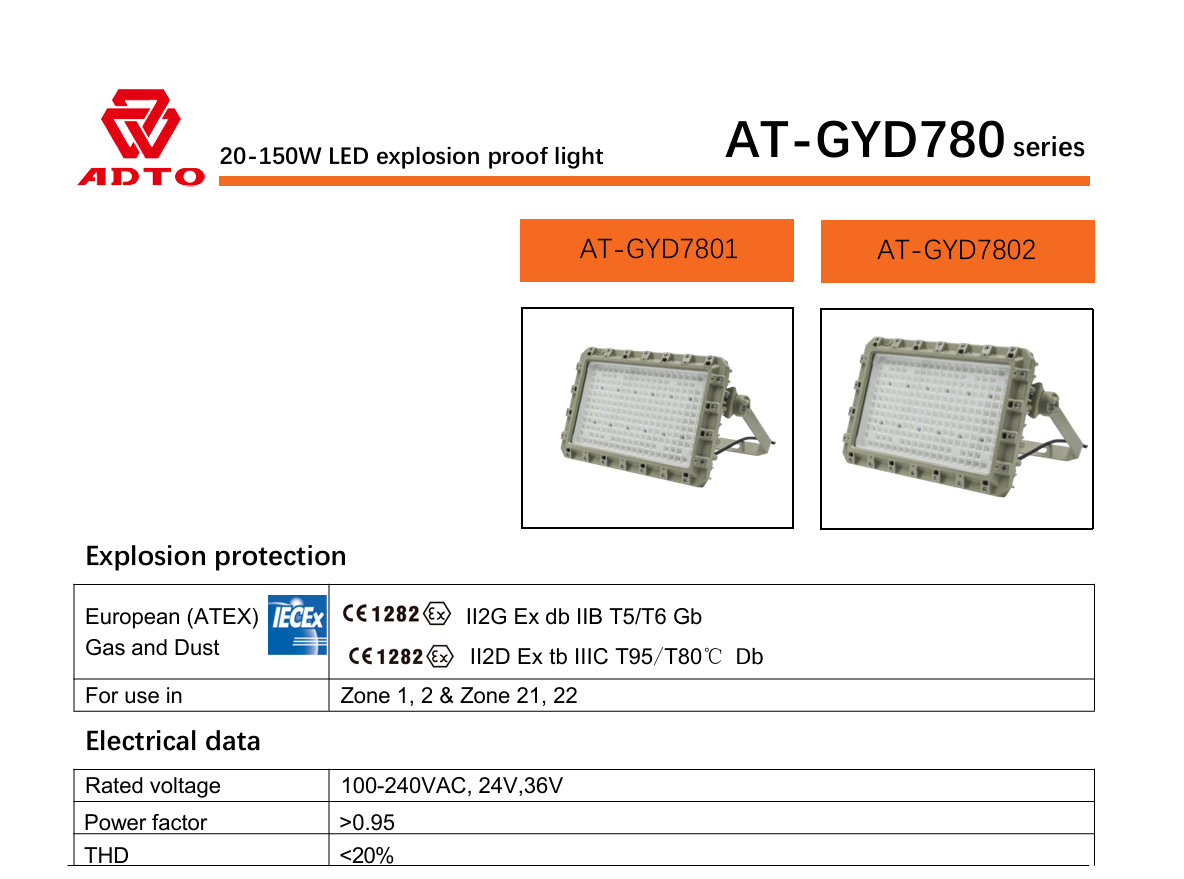

| Explosion protection | ||||
| European (IECEX) | Ex db IIB T5/T6 Gb Ex tb IlIC T95C/T80C Db | |||
| For use in | Zone 1,2&Zone 21,22 | |||
| Electrical data | ||||
| Rated voltage | 100-240VAC,24V,36V | |||
| Power factor | >0.95 | |||
| THD | <20% | |||
| Luminous characteristics | ||||
| Power consumption [W] | 50 | 100 | 150-200 | 240 |
| Colour rendering [CRI] | 70(±2) | |||
| Colour temperature [K] | 5500-6000K | |||
| Luminaire efficiency | 120-130[Lm/W] | |||
| Beam angle | 120°(60°，90°is optional) | |||
| Mechanical data | ||||
| Degree of protection | IP66 | |||
| Cable entry | G3/4" | |||
| Weight [kg] | 5.5 | 8.9 | 12.2 | 15.5 |
| Terminal | ≤2.5mm2 | |||
| Mounting Styles | Ceiling;Wall Bracket;Pendant | |||
