Material:
ADC12
-
Color:
Warm White,White,Cold White
-
Goods No:
9405469000
-
Technics:
20W-100W
-
Weight:
11.4KG/19.4KG
-
Size:
617x155x148mm / 1235x155x148mm
-
Packaging:
Paper Carton
-
Charateristics:
Hazardous area Led light
PRODUCT DESCRIPTION
10mm-thick tempered glass ADC12and 6063 aluminum housing for CES-EX-LN explosion proof led linear light is shock-resistant,anti-vibration,can withstand 7J impact,and is equipped with micro-light elements to reduce
direct visual contact with the light source,prevent glare,and replace the old and prone to failure Fluorescent light fixtures.
The electrical components inside the explosion-proof lamps are completely sealed and can work underwater(3 meters,we have a long time of hydraulic testing and heavy pressure testing),and the light source chamber is
completely separated from the power supply,which effectively avoids the impact of electric sparks on the electrical components or optical components,resulting in explosions.

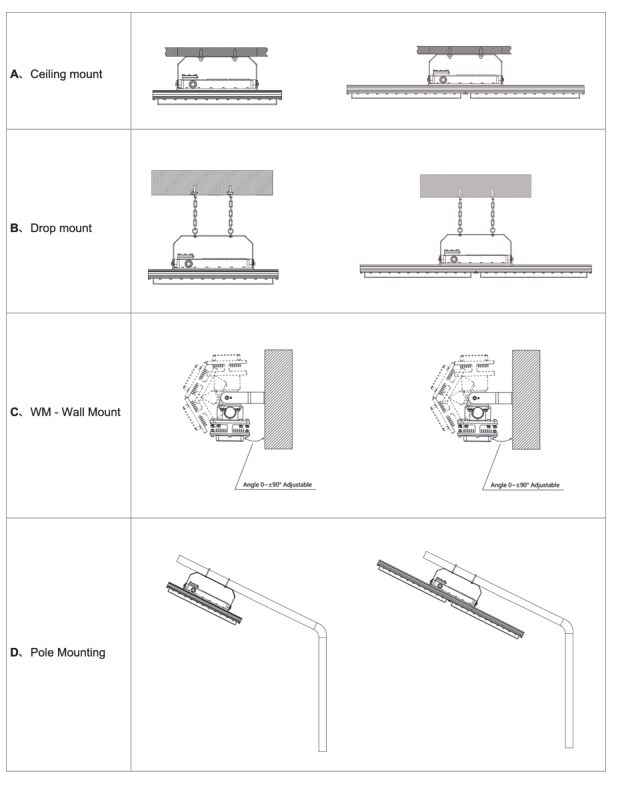

The explosion-proof performance is reliable and the special process treatment,suitable for salt water and corrosive environments,there are a variety of options to choose,such as emergency,installation,color temperature,
length,etc,suitable for harsh environment in Zone 1&21,Zone 2&22.
FEATURES
Patent designed to be Curved Fin Shape,maximize the best heat transmit.
Housing -Aluminum alloy (ADC12 )
Lens -tempered glass (10mm)shock vibration resistant,Super clear,>90%light transmit.
LED:LM80 certified,high efficacy,low decay,long lifespan.130 Im/W 5,up to 26400 Im.
Meanwell LED Driver,>90%driver efficacy.
Circuit design:4KV/6KV Surge Protection power supply.
APPLICATION
Wastewater treatment,oil and gas refineries,drilling rigs,petrochemical facilities,food and beverage facilities,tunnels,outdoor wall and stanchion mounted general area lighting,and where flammable vapors,gases,ignitable
dusts,fibers or flyings are present.Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
DATASHEET
Model | CES-EX-LN-50-100 | CES-EX-LN-120-240 |
Type | LED explosion proof linear light | LED explosion proof linear light |
Power | 50W/60W/80W/100W | 120W/150W/185W/200W/240W |
Input Voltage | 100 - 277 VAC | |
Frequency | 50 / 60 Hz | |
Driver Brand | MeanWell HLG Series | |
Power Factor | >0.95 | |
Total Harmonic Distortion (%) | < 10% | |
Surge protection level (kV) | 6 kV | |
Lighting Lifespan (hrs.) | 50,000 | |
LED Chip type | 3030 | 3030 |
Chip Brand | bridgelux | bridgelux |
Beam Angle(degree) | 120° | |
Lumen Efficiency (lm/W) | 130 lm/W | |
Color Temperature (K) | 5000K (Provides 3000K to 6500K) | |
CRI | ≥ 70 | |
Nominal luminous flux(lm) | 120-130 lm *W | |
Operating temperature | -40℃~ 55 ℃ | |
Luminous Transmittance (%) | >90% | |
Material lighting case | Aluminum alloy (ADC12) |
