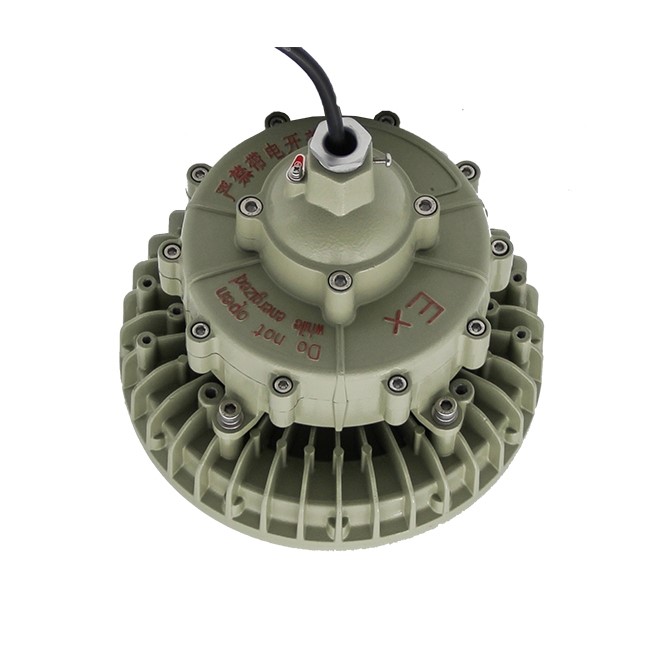

50-150W IECEX Explosion Proof LED high bay
-
Material:
ADC12
-
Color:
Warm White,White,Cold White
-
Goods No:
9405469000
-
Technics:
50-150W
-
Weight:
7.25/8.6KG
-
Size:
1pc/carton
-
Packaging:
Paper Carton
-
Charateristics:
Explosion Proof Led light for Gas Station and other Hazardous Area
Product Information
Applications
Typical applications include:
Oil and gas industries
Chemical,petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Features:
Zone 1&2.Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide,low cost operation in harsh and heavyindustrial applications
Isolated LED compartment reducestemperature within driver housing
Multi choice of beam angle for45°90°120°
| European (ATEX) | Ex db lIC T5/T6 Gb |
| Ex tb IlIC T95°cT80°cDb | |
| For use in | Zone 1,2 Zone 21,22 |
| Rated voltage | 100-240VAC,50-60Hz |
| Power factor | >0.95 |
| Power consumption [W] | 50W-150W |
| Colour rendering [CRI] | 70(±2) |
| Colour temperature [K] | 5700K |
| Luminaire efficiency | 130-145lm/w |
| Beam angle | 120° (45°，90°is optional) |
| Degree of protection | IP66 |
| Cable entry | G3/4" ;NPT3/4 |
| Weight [kg] | 7.25KG/10KG |
| Mounting Styles | Ceiling;Wall Bracket,Pendant |
