Material:
ADC12
-
Color:
grey/yellow
-
Goods No:
9405469000
-
Technics:
100W
-
Weight:
7KG
-
Size:
400X400X169mm
-
Packaging:
1pc/carton
-
Charateristics:

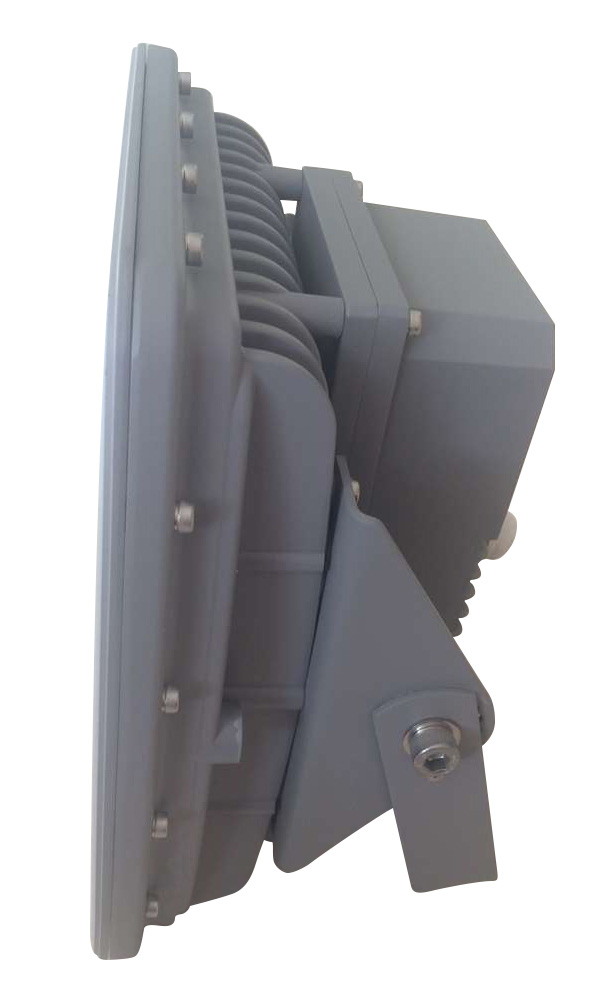

Explosion proof light
APPLICATION:
Wastewater treatment,oil and gas refineries,drilling rigs,
offshore platforms,petrochemical facilities,chemical plants,coal mines,aviation bases,food plant,Pharmaceutical plant,beverage facilities,and where flammable vapors,gases,ignitable dusts,fibers or flyings are present.
FEATURES
Patent designed to be Curved Fin Shape,maximize the best heat transmit.
Aluminum alloy (ADC12 )
Lens -tempered glass(8mm)shock vibration resistant,Super clear,>90%light transmit
LED:LM80 certified,130 Im/W +5,up to 26000lm.
Meanwell LED Driver,>90%driver efficacy.
Circuit design:4KV/6KV Surge Protection power supply.
Protection:IP66,high protection grade for waterproof and dust-proof.
CERTIFICATE
ATEX:
·®l川2 G Ex eb mb op is IIC T4Gb;
·®ll2 D Ex op is tb lIC T95°CDb;
Certificate No:IEP 19ATEX 0714
IECEX:
·Ex ec IIC T4Gc;
·IP66;
Certificate No:IECEx UL 18.0046
DATASHEET
| Model | AT-CES-J60 | AT-CES-J80 | AT-CES-J100 |
| Power | 60 W | 80 W | 100 W |
| Input Voltage | 100 - 277 VAC | 100 - 277 VAC | 100 - 277 VAC |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Driver Brand | MeanWell | MeanWell | MeanWell |
| Driver Model | HLG Series | HLG Series | HLG Series |
| Power Factor | >0.90 | >0.90 | >0.90 |
| Total Harmonic Distortion (%) | < 10% | < 10% | < 10% |
| Surge protection level (kV) | 6kv | 6kv | 6kv |
| Lighting Lifespan (hrs.) | 50,000 | 50,000 | 50,000 |
| LED Chip type | 3030 | 3030 | 3030 |
| Chip Brand | bridgelux | bridgelux | bridgelux |
| Beam Angle(degree) | 15°, 30° 60°, 90°, 120° | 15°, 30° 60°, 90°, 120° | 15°, 30° 60°, 90°, 120° |
| Lumen Efficiency (lm/W) | 110 ~ 130 lm/W 120LM *W | 110 ~ 130 lm/W 120LM *W | 110 ~ 130 lm/W 120LM *W |
| Color Temperature (K) | 5000K (Provides 2700K to 6500K) | 5000K (Provides 2700K to 6500K) | 5000K (Provides 2700K to 6500K) |
| CRI | ≥ 70 | ≥ 70 | ≥ 70 |
| Nominal luminous flux(lm) | 7200 lm | 9600 lm | 12000 lm |
| IP Rating | IP66 | IP66 | IP66 |
| IK Rating | IK09 | IK09 | IK09 |
| Vibration Rating | <10% | <10% | <10% |
| Lens Material | Tempered Glass (4mm) | Tempered Glass (4mm) | Tempered Glass (4mm) |
| Luminous Transmittance (%) | >90% | >90% | >90% |
| Material lighting case | Aluminum alloy (ADC12) | Aluminum alloy (ADC12) | Aluminum alloy (ADC12) |
| Product Dimension (L x W x H) | 300*300*165 mm | 300*300*165 mm | 300*300*165 mm |
| Operating Temperature (°C) | -40 ~ 40°C | -40 ~ 40°C | -40 ~ 40°C |
| Mounting type | Ceiling, Drop, Wall, U-Bracket, Pole | Ceiling, Drop, Wall, U-Bracket, Pole | Ceiling, Drop, Wall, U-Bracket, Pole |
| Net Weight (Kg) | 7 | 7 | 7 |
